From Sketch to 3D Model: An AI Workflow for Designers.

Why sketch-to-3D used to mean three different tools

Turning a concept sketch into a usable 3D model has historically meant a relay race across software. Sketch in one app. Clean up or reinterpret the image in a second tool. Convert to a mesh in a third. Render somewhere else entirely. Every handoff meant a new login, a new file format, and a new chance for the concept to lose whatever made it good in the first place.

Product designers know this pain specifically: hours lost exporting a silhouette from a sketching tool, importing it into a CAD or 3D package just to check proportions, then bouncing back to adjust a line that read wrong in 3D. Game developers and exhibition designers hit a version of the same wall. Concept art can look stunning and still be useless the moment someone tries to block it out spatially, because nothing about the image was built with a mesh in mind.

Industry workflow guidance still reflects this reality: sketch or prepare an image first, generate a 3D base separately, then clean up, retopologise, and render using yet another set of tools. That's not a bad process. It's just a slow one, and every extra tool is another place for a concept to stall.

The fix isn't a single miracle app. It's keeping the sketch inside one workflow, on one credit system, so the idea moves from image to mesh to scene without ever leaving the project. That's the shape of the workflow below.

Step 1: get the concept sketch AI-ready

Start rough. A marker sketch, a scanned thumbnail, or a quick digital doodle all work as an input, as long as the silhouette and proportions are clear. Current 3D generation tools respond best to a clean, readable shape rather than a polished rendering, so resist the urge to over-finish the sketch before moving forward.

This is where Image (/generate/image) earns its place in the workflow. Use it to tighten linework, generate two or three angle variations, or push a style direction before committing anything to 3D. Think of it as the intermediate step between "idea on paper" and "input a generator can actually use."

• Automotive design: sketch a side profile, then generate a three-quarter view variant to check how the surfacing reads from an angle the original drawing never showed.
• Exhibition design: sketch a stand layout, then generate a cleaner elevation to hand off to the next step, rather than working from a loose thumbnail.
• Product design: generate two finish directions from the same silhouette to see which reads better before any 3D work starts.

If the project needs client sign-off before moving to 3D, keep the variations in Boards. It's built for exactly this: collecting visual references and grouping frames for review, so stakeholders see the direction before credits go toward a full mesh.

Step 2: convert the sketch into a 3D base model

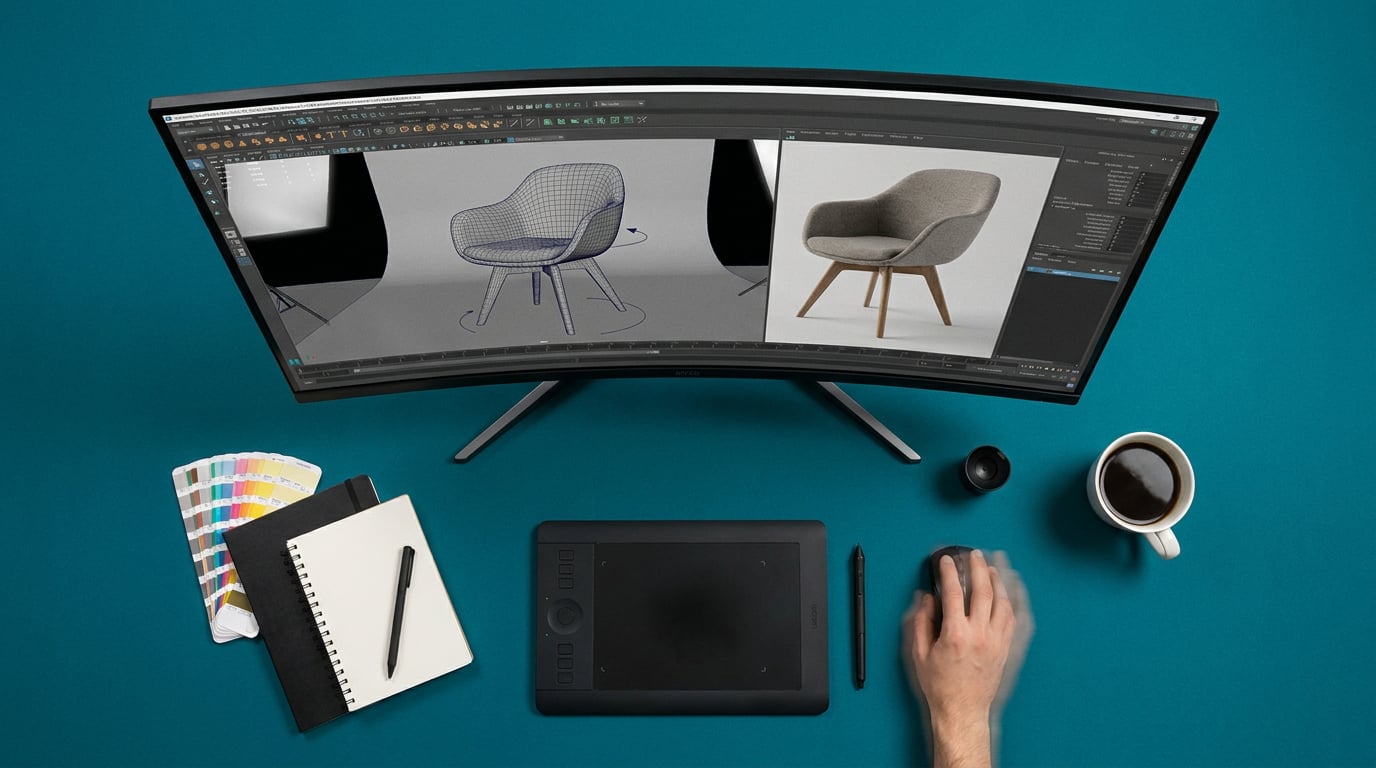

This is the pivot point of the whole workflow: a 2D idea becomes a mesh you can rotate, light, and place in a scene. Use 3D (/studio) to generate a 3D model directly from the cleaned-up concept image. Uploading a clear image can produce a usable base model in a matter of seconds to a couple of minutes, which changes the economics of exploration. Instead of committing to one direction, a designer can test several.

Once the base model exists, retexture it without re-sculpting anything. That's useful for product designers testing material finishes on the same housing, or automotive designers running the same body through five colourways to see which one reads best under studio light. The geometry stays fixed; only the surface treatment changes.

Use the viewport to check proportions from angles the original sketch never showed. A profile sketch can look perfect and still reveal an awkward transition the moment it's viewed three-quarter or from above. Catching that now, at the mesh stage, is far cheaper than catching it after fabrication drawings or CAD detailing.

Interior designers can push a furniture sketch through the same step to test a piece against a room before committing to fabrication drawings. A chair concept that looked right on paper might sit awkwardly in a space at scale. Seeing it as a mesh, before it's specified, prevents that mismatch from reaching production.

Step 3: place the model in a real scene with Scene Composer

Scene Composer (/studio/compose, desktop-only) is where an isolated 3D model becomes a photorealistic image. This is the step that turns a technically correct mesh into something a client, art director, or stakeholder can actually respond to emotionally, not just technically.

Pose the model with gizmos rather than re-rendering from scratch every time the angle changes. Product designers use this to check hero angles for packaging or marketing shots. Set designers use it to block a prop within a stage, testing how it reads against the rest of the composition before anything physical gets built.

Use 3D Worlds as backdrops instead of building an environment from nothing. That's a fast win for exhibition designers previewing a stand in context. Rather than modelling an entire hall or floor plan, drop the stand concept into an existing world and see how it reads at scale, under realistic lighting, next to a crowd or a corridor.

Render to a photorealistic image once the pose and lighting read correctly. This gives stakeholders something closer to a final visual than a grey-shaded mesh, which matters enormously in review meetings. A client can approve a direction from a rendered scene far more confidently than from a wireframe.

Step 4: bring in Ray when the workflow stalls

Ray (/ray) acts as a creative director mid-project. When a designer isn't sure whether to regenerate the sketch, retexture the model, or adjust the lighting in Scene Composer instead, that's the moment to ask Ray directly.

Ray runs on a full Claude surface with web search, which means it can pull reference logic into a decision rather than answering from a vacuum. Ask it which material finish reads closest to a specific real product, or which lighting mood matches the tone of a particular film reference, and it can ground the answer in something concrete rather than a generic suggestion.

Treat Ray as a second opinion at the exact point where the workflow has too many directions to choose from alone. That's a common moment across disciplines: an automotive designer unsure whether a colourway needs a material change or just different studio lighting; a game developer unsure whether a prop's silhouette or its texture is what's reading wrong at a distance. Ray's job in this workflow isn't to generate the asset. It's to help decide which lever to pull next.

Chaining it all in Canvas for repeatable projects

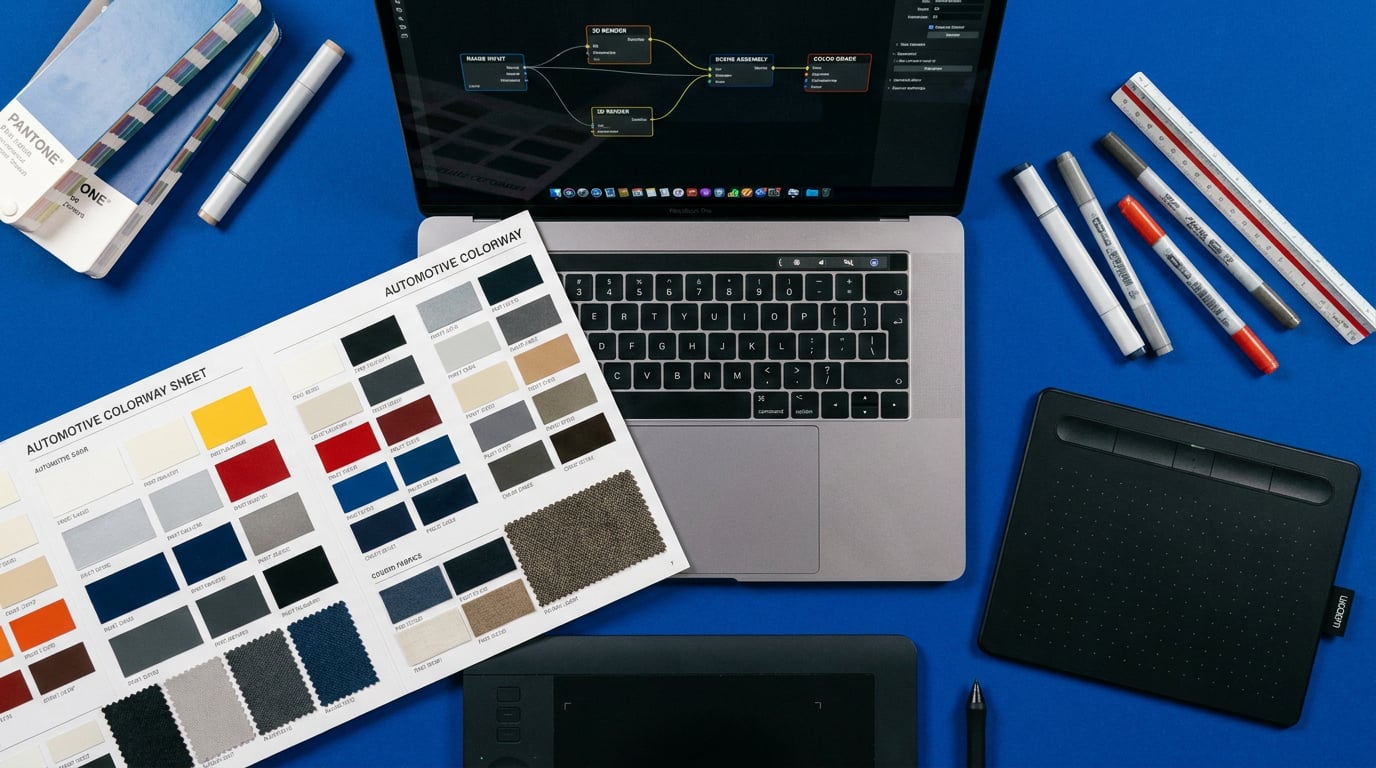

Canvas (/canvas) turns the manual four-step process into a node-based workflow that can be reused across a product line, vehicle range, or exhibition series. Instead of repeating sketch-to-image-to-3D-to-scene by hand for every variation, build the chain once and run it again.

RayNode plans the sequence, and LlmChatNode feeds creative direction into image and 3D nodes without re-typing prompts each time a new variant is needed. That matters most for teams working at volume rather than on a single hero asset.

• A game studio prototyping multiple props can run the same chain repeatedly instead of rebuilding it by hand for every asset.
• An automotive team testing one body shape across five colourways can push each variant through the identical pipeline, changing only the material input.
• An exhibition team producing a series of stands for different regional shows can reuse the same sketch-to-scene chain with new context each time.

Close the loop by pushing final renders into Boards for client review, or into Marketing Studio if the 3D asset needs to become social or ad creative next. A hero render generated for internal sign-off doesn't need to be recreated from scratch for a campaign carousel. It's the same asset, moved to the next stage of the same project.

The takeaway

Sketch-to-3D stopped being a technical bottleneck once image generation, mesh conversion, and scene composition moved into the same workspace. The workflow that used to cost a designer three logins and a dozen file exports now runs as: clean the sketch, convert it to a mesh, place it in a scene, ask for a second opinion when stuck, and chain the whole thing for repeat use. None of that requires abandoning judgement to automation. It just means the concept never has to leave the project to become something real.
